Plastic regeneration

Giving plastic a second life: Aktid develops high-performance facilities to produce high-value recycled materials.

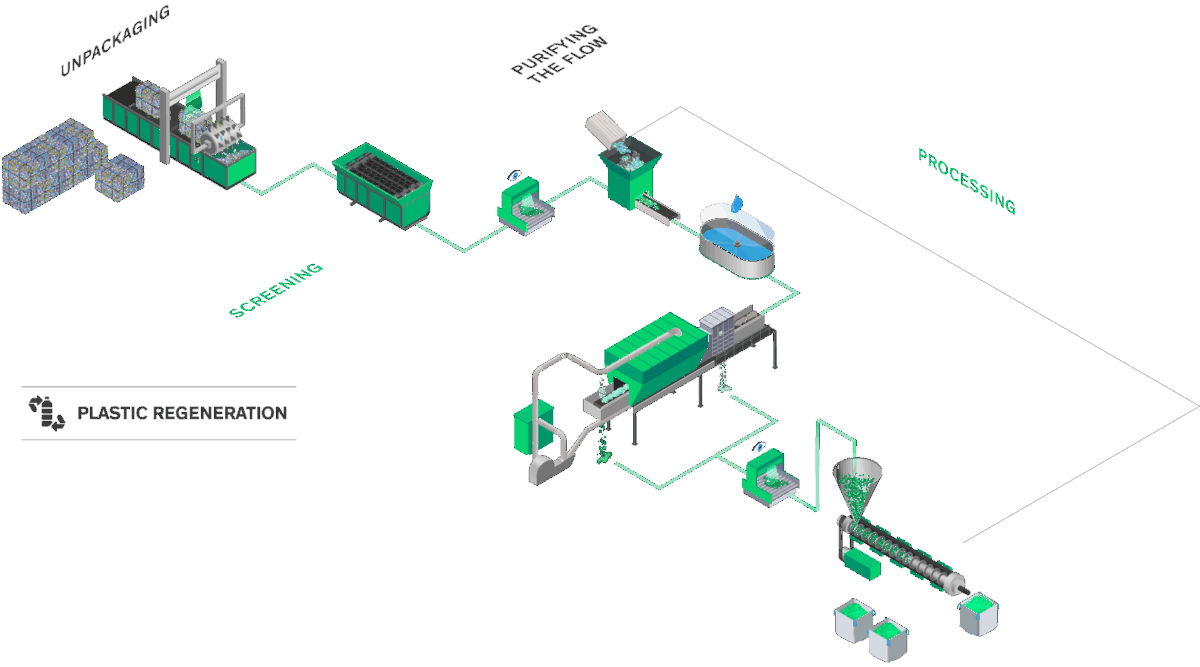

The main stages
in  regenerating plastic

  • Stage 1
  • Stage 2
  • Stage 3
  • Stage 4

Stage 1

Unpackaging

The plastic bales arriving from the selective collection and sorting centres are decompacted and the bindings removed.

loading='lazy'

Stage 2

Screening

A ballistic separator is used to remove light and fine contaminants from the main flow.

loading='lazy'

Stage 3

Purifying the flow

A combination of optical sorters separates out the last remaining intruders to obtain a purity level of over > 99%.

loading='lazy'

Stage 4

Processing

The plastics are crushed and washed to remove any labels, in particular. The bath also serves to separate plastics with different densities. Once dried by an aeraulic separator, the flakes are sorted again by optical sorting machines to eliminate any remaining contaminants. Lastly, an extruder processes the flakes into pellets, ready to be used again as raw material for manufacturing new products.

loading='lazy'
53 kb
170 kb
PPL - Régéplastique déchets

What is plastic regeneration?

Plastic regeneration is a waste recovery process that reprocesses plastic into a recycled raw material, also known as a secondary raw material. Once reprocessed, the plastic has comparable properties to the raw material.

First the plastic is sorted in sorting centres, then it undergoes mechanical secondary sorting on arrival at the recycling centre. This essential step is designed to substantially increase the material purity rate and attain the level necessary for the remainder of the recycling line to operate properly and efficiently as it processes the plastic stream into ready-to-use recycled granules.

An Aktid plastic regeneration facility offers :

  • A flexible process capable of adjusting the granularity of waste sorting at the outlets’ request (e.g. , sorting by colour)
  • Facilities and a robust, reliable process that is perfectly suited to 24/7 operation
  • A team of experts capable of providing the guidance and support you need to prepare and carry out your preventive maintenance operations, thereby optimising your costs and keeping your facility’s downtime to a minimum



139 kb
PPL 71
249 kb
Photo Toulouse - SB+

Close- up on: ballistic separators

Ballistic separators perform the “core process” in next-generation waste-sorting centres. They are used to separate a stream of mixed materials into three or four categories, based on the principle that, depending on their physical properties, materials react differently when they are moving.

The ballistic separator designed by AKTID delivers an excellent quality of separation and processes an additional 30% of throughput by leveraging:

  • Unrivalled durability
  • Over 20m² of screening area
  • Variable, real-time adjustable speed of operation
  • Slats with a large range of movement
  • Adjustable inclination during operation
  • Easily-adjustable screening grids

Our plastic recycling references

57 kb

MORLAIX

Morlaix (29)

Read more

20 T/h

Industrial solid waste

Solid recovered fuel’ (SRF) & refuse-derived fuel (RDF)

Sorting center upgrades

France

76 kb

TRIVALLOIRE

Firminy

Read more

15 T/h

Materials Recovery Facility (MRF)

France

69 kb
Valopôle 72

VALORPÔLE 72

Le Mans

Read more

15 T/h

Materials Recovery Facility (MRF)

Sorting center upgrades

France

100 kb
Syproval

SYPROVAL

Donzère

Read more

OMR : 25 T/h DAE : 12T/h

Industrial solid waste

Municipal solid waste (MSW)

Solid recovered fuel’ (SRF) & refuse-derived fuel (RDF)

France

57 kb

GUYOT ENVIRONNEMENT

Morlaix

Read more

24 T/h

Industrial solid waste

Solid recovered fuel’ (SRF) & refuse-derived fuel (RDF)

Sorting center upgrades

France

50 kb

TRI VAL DE LOIR(E)

Tours

Read more

17 T/h

Materials Recovery Facility (MRF)

France
